Auth Settings

Authentication in Endatix runs in two places:

  • Endatix API validates access tokens, issues JWTs, and applies external role mappings.
  • Endatix Hub runs the sign-in experience with NextAuth and bridges external OIDC sessions.

The Platform Admin Auth Settings page reads both sides and shows a safe summary without exposing secrets.

  1. Sign in as a platform administrator.
  2. Open Platform Admin.
  3. Under Configuration, choose Auth.

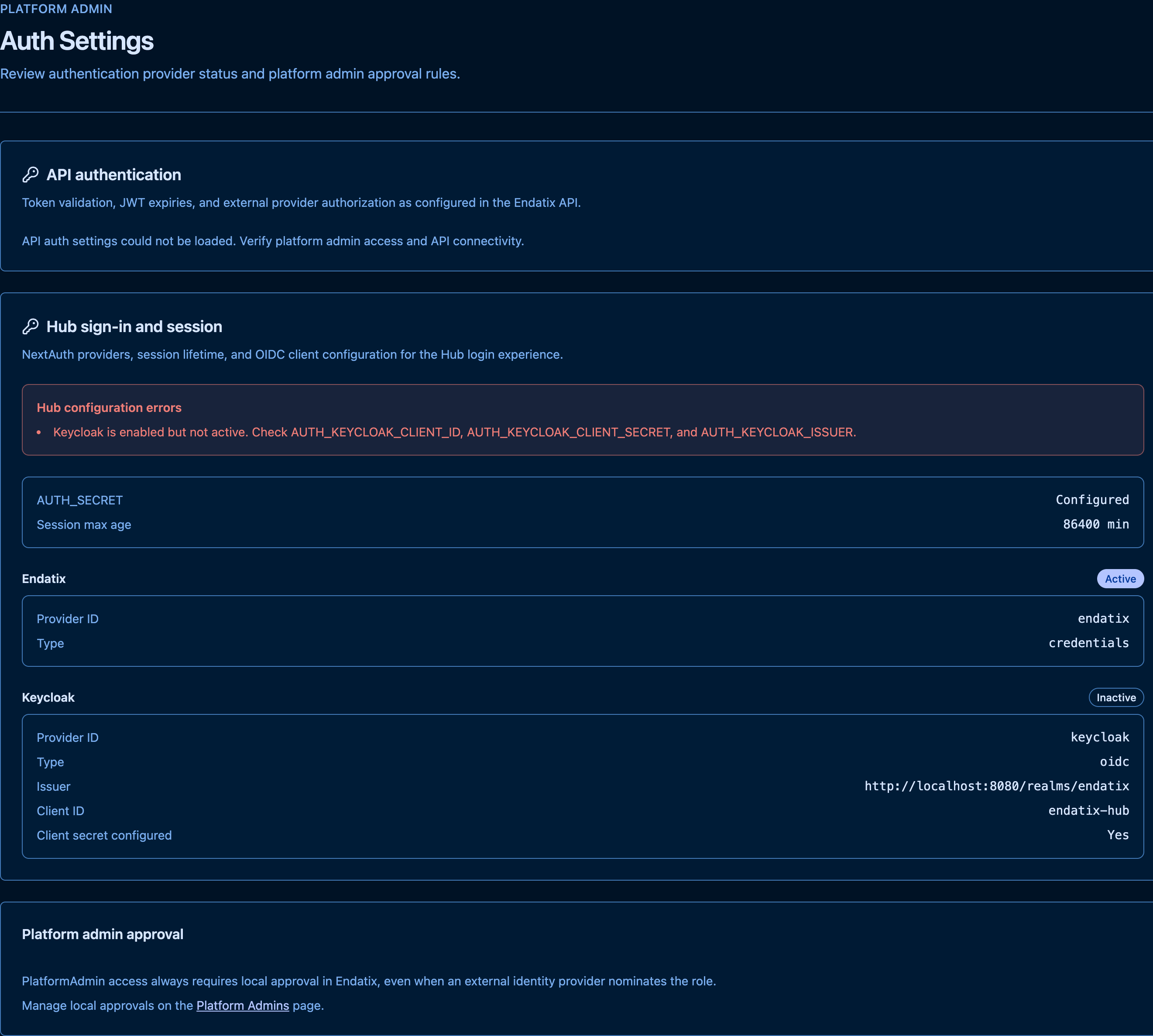

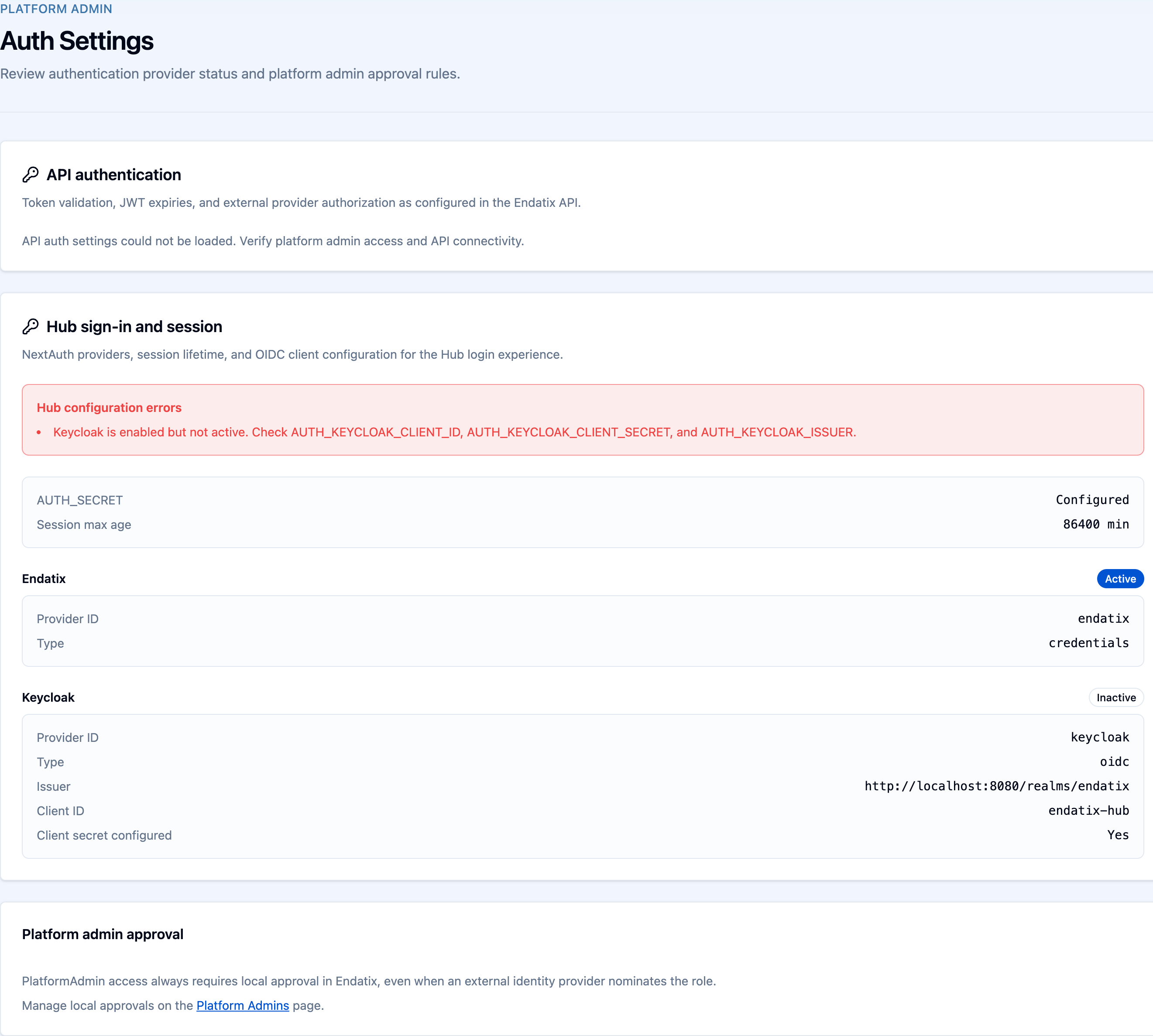

Auth Settings showing API authentication, Hub sign-in, and platform admin approvalAuth Settings showing API authentication, Hub sign-in, and platform admin approval

API authentication​

Configured under Endatix:Auth:Providers:* in the API host configuration.

Typical settings include:

  • Endatix JWT signing and expiry values
  • ReBAC token issuer and lifetime (Resource Based Authorization)
  • Keycloak issuer, audience, and role-mapping presence
  • Whether additional external provider authorization is active

The API exposes a platform-admin endpoint:

  • GET /admin/auth/settings

Responses include only allowlisted fields such as provider status, issuers, expiries, and clientSecretConfigured flags. Signing keys, client secrets, and raw role-mapping values are never returned.

Hub sign-in and session​

Configured in the Hub deployment environment and hub/auth.ts provider registration.

Typical settings include:

  • AUTH_SECRET
  • SESSION_MAX_AGE_IN_MINUTES
  • AUTH_KEYCLOAK_ENABLED
  • AUTH_KEYCLOAK_CLIENT_ID
  • AUTH_KEYCLOAK_CLIENT_SECRET
  • AUTH_KEYCLOAK_ISSUER

The Hub admin page reads these values server-side and exposes only presence flags and non-secret metadata to the UI.

Configuration drift​

Because API and Hub are separate processes, they can drift. The Auth Settings page highlights common mismatches, such as:

  • Keycloak enabled in the API but inactive in the Hub
  • Keycloak active in the Hub but disabled in the API
  • Different Keycloak issuer values between API and Hub

When drift is detected, align the API Endatix:Auth:Providers:Keycloak section with the Hub AUTH_KEYCLOAK_* variables.

Security model​

  • Platform Admin authorization is required in both Hub and API.
  • Settings are fetched server-side in Hub RSC pages; they are not exposed as public environment variables.
  • Transport security relies on HTTPS between browser, Hub, and API.
  • Admin responses are intentionally non-sensitive. Additional end-to-end encryption is not required for these metadata endpoints.

Platform admin approval​

External identity providers may nominate users for platform administrator access, but local approval is still required. Manage approvals from Platform Admin → Platform Admins.
